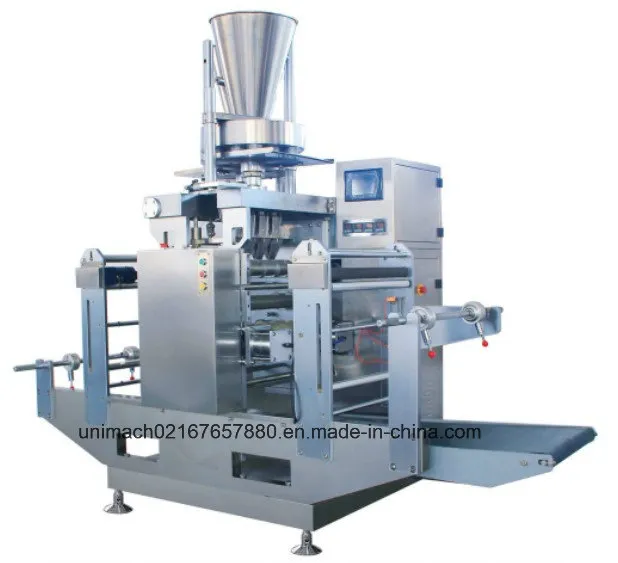

Abnormal Shape Warm Pad Multi

Basic Info.

Model NO.	HB
Material Type	Solid
Packaging	Pouch
Packaging Material	Film
Packing Speed	20-50times/Min
Measuring Range	3-80ml
Bag Width	50-105mm(W)
Bag Length	50-150mm(L) (Adjustable)
Transport Package	Wooden Case
Specification	ISO, GMP
Trademark	UNIMACH
Origin	China
Production Capacity	500 Sets/Year

Packaging & Delivery

Package Size 2.65cm * 1.50cm * 2.20cm Package Gross Weight 1600.000kg

Product Description

Usage:
Machine is suitable for packing all kinds of warm bags and abnormal pouches. Such as warm bag, warm pouch, warm keeper, baby warmer, heating paste, warm metra paste, foot paste, heater pads, warm baby paste, heat patch, body warmer, self-warming sticks, foot pad etc. Also suitable to pack loose, non sticky granule material in the medicine, food, daily chemical and other industry, and automatic packing into sachets with measuring requirement. Such as Chinese medicine infusion, oatmeal, coffee etc. Crystalline materials as monosodium glutamate, white sugar, salt etc. Small shot materials as Chinese patent drug, dryer and so on.
Features:
1. Advanced performance, high power, low noise, compact structure, Operate steadily, easy to maintain, and has a long life span.
2. Adopt five shaft servo motor in step driver, man-machine interface touch adjustment, controlled by PLC, it is precise in automatic in step positioning.
3. A high degree of automatic. Machine can finish packing at one time from longitudinal sealing, longitudinal cutting, transverse sealing, filling, embossing, notch cutting, cutting Dotted line, transverse cutting to outputting finished sachets.
4. High precision whole rolling type heat sealing roller are adopted as sealing mould. 4-side sealing, multi-line sachets form. Because liquid material will easily leak in sealing side, an extra smooth unstriated sealing roller is setup to ensure sealing sides compact and tightly. With high packing speed, smooth bag shape, delicate and beautiful, packaging with high efficiency.
5. Fast and convenient to adjust, it can step-less adjust pouch length without changing the mould. And can adjust the functions as longitudinal sealing, transverse sealing, filling, embossing, Dotted line cutting and transverse cutting through man-machine interface.
6. Accurate in measurement, According to liquid material, specifically designed of centrifugal liquid pump for filling, measuring control adopt high precise electro-magnetic valve, each valve match with voltage regulator, each line's dosage can be adjusted easily and accurately.
7. A PLC is used for automatic control, Each actuating mechanism adopt servo motor to driver, it is precise in automatic in step positioning, reliable performance, convenient to operate, and fully automatic.
8. Photoelectric tracking system is adopted to ensure correct printing and with automatic counting function.
9. Adaptability of the package film. The sealing temperature of machine is with automatic control, and with high control accuracy (± 1C ° ). Suitable for most complex film packing film in home and abroad, as PET/AL/PE, PET/PE, NY/AL/PE, NY/PE and so on.
10. Extra function set up, for example, sachet cutting can choose dotted line knife, flat cutting knife or abnormal shape knife. And can choose different kinds of alarm requirements and so on.

Bag length	50-150mm(L) (adjustable)
Bag width	50-105mm(W)
Packing speed	20-50times/min depend on pouch size and material
Measuring range	3-80ml
Applicable film	non-woven fabrics PET/AL/PE PET/PE NY/AL/PE NY/PE
Max width of film roll	450mm
Max film roll diameter	Φ600mm
Film roll core diameter	Φ75 mm
Power voltage	380V/ 50HZ(do as customer's request)
Power	12KW
Package size	(L)2650mm×(W)1500mm×(H)2200mm
G.W	1600KG
